12 Way Fuse Block

Description

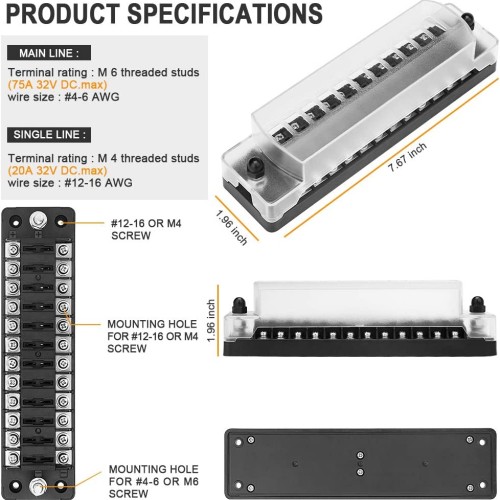

The 12-way fuse block with a negative busk, accepts ATC/ATO standard fuses. Max Voltage: 32V DC, Max. Current: 100A per block and 30A per circuit.

This fuse holder is made of high-quality PBT material that is insulating, heat resistant, and flame retardant.

New Design 12-Way Fuse Block

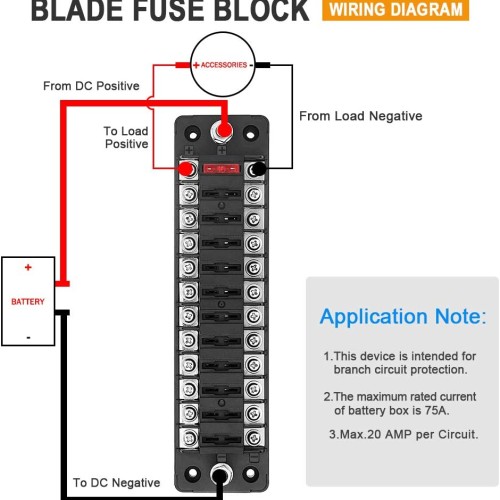

The 12-way blade fuse block accepts ATC/ATO (medium size) fuses from 1A to 20A. It has positive and negative sides, which means that for every positive screw there is a negative screw, making your circuit visible at a glance. This device is used for branch circuit protection and has good conductivity. Max. 32V DC operating voltage. Max. 20 amps per circuit, 75 amps per panel.

High Quality and Safe Material

The fuse holder is made of environmentally friendly PBT material and meets all the criteria for an ideal fuse block. It has mechanical strength, insulation, heat resistance and flame retardancy. It will hardly cause any problem such as producing breakage, deformation, burning or short circuit.

Protection Cover and Pre-printed DIY Sticker

Transparent plastic cover with screw cap, easy to operate, splash-proof and dust-proof design. Add extra protection for your fuse box and fuses. Comes with multi-functional stickers for DIY according to your specific needs, convenient for inspection and maintenance, easy to troubleshoot in the outdoors

Widely Application

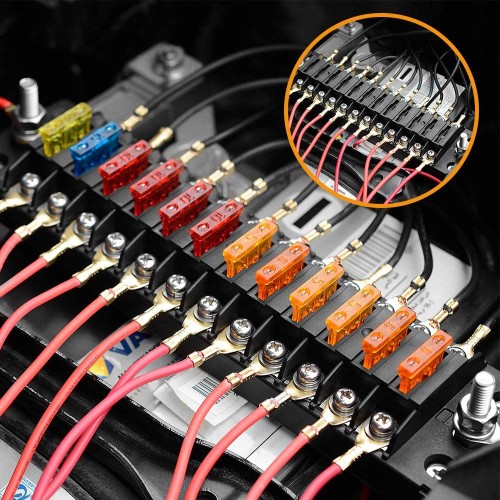

This 12-circuit fuse box is widely used in cars, trucks, boats, tankers, marine, SUVs, yachts, RVs, vans, ships, etc. The fuse of each fuse box can be connected to any circuit of electrical appliances. For example: car dome light, car headlight, width light, fog light, warning light, car refrigerator, car charger and car fan, car TV, etc.
